Features WiFi Heatmap Planner Simulator

WiFi heatmap Simulator helps you to measure, predict and analyse a WiFi networks coverage and performance.Measured and simulated data is shown in an intuitive user interface.Clearly visualise the expected WiFi coverage in a simulated RSSI Heatmap, to analyse & plan changes, improve performance & resolve issues.Design a WiFi network and calculate an expected performance and coverage heatmap from an existing floorplan image, with walls and access point properties considered in calculations.Features- Supporting 2.4 & 5GHz WiFi.
6GHz WiFi support coming soon- Plan a network based on a floorplan image.- Predict and analyse network coverage heatmap and performance based on walls and access point properties.- Measure a WiFi connections signal strength, speed, other properties, interferers, etc.- Find all other WiFi networks that are operating in your area.- Analyse WiFi Channel usage to learn which are free and which are crowded with other interfering networks.Steps to predict WiFi coverage:1.
Select to predict WiFi coverage2.
Select your floorplan image3.
Set the plan area size, or select to edlt > adjust size from locations.
4.
Move the markers and enter the distance between them.5.
Add the walls based on the floorplan image.6.
Add an access point, and wait for the calculation result.7.
Consider changing the detail level to get a higher resolution predicted heatmap as needed.
Note that higher detail prediction takes longer to calculate.8.
Move the access points as needed.9.
Save the network plan for later, or to share with colleagues.Steps to analyse WiFi networks - Select to view:- the current connection- the available WiFi channels- the visible WiFi networksComing soon:* Supporting 6GHz WiFi* Supporting WiFi Heatmap based on measurement as well as predicted Signal strength, speed, etc* Importing & exporting different file types* Cloud supportFor more details, feedback, issues, etc, please contact us at:[email protected]

Secure & Private

Your data is protected with industry-leading security protocols.

24/7 Support

Our dedicated support team is always ready to help you.

Personalization

Customize the app to match your preferences and workflow.

Screenshots

See the WiFi Heatmap Planner Simulator in Action

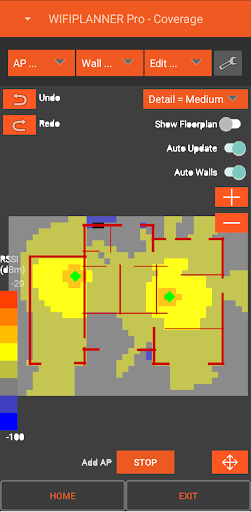

WiFi Heatmap Planner Simulator Screen 1
